2L Double Planetary Vacuum Mixer Used in Glovebox

Marka Adı:	TICO
Model Numarası:	STC-EXJ-2LF
Moq:	1 Takım
fiyat:	Anlaşılabilir
Teslim Zamanı:	20~30 gün
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen, Çin

Ürün Adı:

Çift gezegensel vakum mikseri

Gerilim:

Tek fazlı, 220V

Toplam Güç:

3kw

Dağıtıcı motor gücü:

1,5 kW

Boyut:

L640 * G450 * Y780mm

Ağırlık:

320kg

Ambalaj bilgileri:

Ahşap ambalaj

Ürün Tanımı

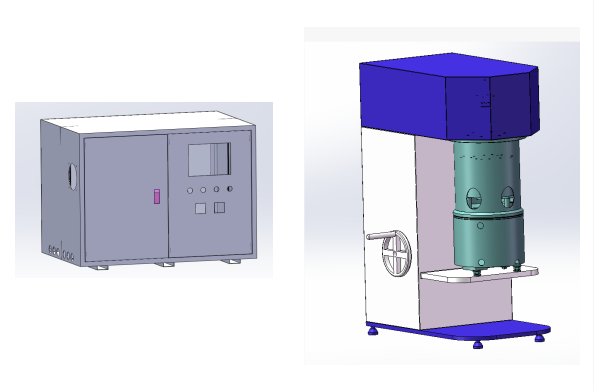

2L Double Planetary Vacuum Mixer Used in Glovebox

Product Introduction

The machine is a highly efficient mixing device that combines vacuum low-speed mixing and high speed dispersion, making it suitable for mixing various solvents and powders.

Key Features

● Planetary mixer featuring a twisted-frame paddle, equipped with high-speed disperser and a wall scraper, ensures no unmixed zones.

● The vacuum environment can effectively eliminate the gas bubbles generated during the mixing, with excellent vacuum retention performance.

● Low-speed stirring achieves macroscopic mixing through combined revolution and self-rotation of the paddle; high-speed disperser achieves microscopic mixing via shear force.

● The machine can perform multi-segment speed operation, rotation speed and time can be set for each segment.

● The effective bucket volume is 2L, and made by high-quality SUS304 stainless steel, resistant to acids and alkalis.

● Equipped with a spotlight, convenient operation and ensures safety during vacuum mixing.

●Jacketed mixing bucket design, can filling the circulating cooling water into the interlayer, suitable for various process requirements.

● PLC controlled with HMI interface enables automated operation with simple and convenient control.

● Compact design, suitable for operation inside a glovebox.

Technical Parameter

Model	STC-EXJ-2LF
Voltage	Single phase, 220V
Total power	3KW
Effective volume	2L
Vacuum level	-0.098 MPa
Maximum revolution speed	70rpm
Dimension	L640 * W450 * H780mm
Weight	320kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
